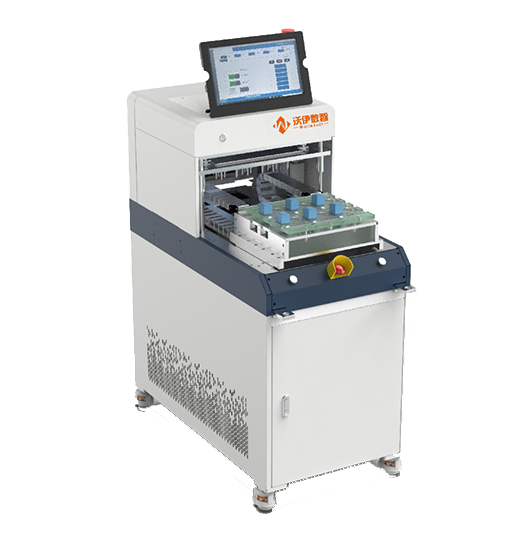

FCT offline applies to stand-alone semi-automatic offline mode of operation, by human pick and place the product to complete the test, general intelligent software, interfaces, etc., to support the work of fast-removal and fast-exchange, while supporting the parallel shift module to become Honeycomb FCT. | ||
Drawer-Type | Normal/Shielded(Version) | Fast Disassembly & Replacement |
WE-CLIENT | Offline | SMEMA interface |
OBP | Electrical Performance Testing (Multi-Channe | High Accuracy) | Functional & Communication Testing |
● Default ○ Optional - Null |  |  |  |
Model No. | Honeycomb FCT | FCT offline | FCT online |
Applicable products | |||
Number of PCBA Assemblies | Max：8pcs | ||
PCBA Size | Max：330×300mm | ||
PCBA Weight | Max：5Kg | ||
Height Range | Top Max：60mm；Bottom Max：60mm | ||
TP Points | 400×4 | 400 | 400 |
Functional items | |||
Barcode Recognition | ● | ● | ● |
OBP | ○ | ○ | ○ |
Electrical Performance Testing | ● | ● | ● |
Functional Testing | ● | ● | ● |
Communications Test | ● | ● | ● |
Visual Inspection | ○ | ○ | ● |
Key Performance Indicators | |||
Electrical Performance Test Index | 6½ digits Accuracy, supports the measurement functions of DCV, DCI, ACV, ACI, 2wr. | ||
Communication Test Range | RS485/RS232/IrDA/PLC/RF/Bluetooth | ||
Needle Bed Positioning Accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
Software Configuration | |||
WE-CLIENT | ● | ● | ● |
WE-MACHINE | ○ | ○ | ○ |
Software Configuration | |||
Size LWH | 2.1×2.5×2.1m | 570×1030×1500mm | 840×1100×1900mm |
Operating Surface Height | 900±30mm | ||
Conveyor Line Direction | L→R or R→L | ||
Conveyor Line Form | Dual stage, Adjustable Width Belt | - | Single Stage, Adjustable Width Belt |
Power Supply Specifications | AC220V±10%,50~60HZ | ||
Air Pressure | 0.4~0.6MPa | ||
On-line Interface | SMEMA (European 14-pin) | ||
Network Interface | Wireless or RJ45 | ||
Safety Design | Safety Door Switch (Stops when door is opened) | Safety Light Curtains | Safety Door Switch (Stops when door is opened) |
